Here’s How to Manually Eject a Disc Stuck in Your PS4

November 19, 2013 Written by Jason Dunning

ps4discfix7

Instead of just hitting your PS4 on its side and hoping it eventually spits out a disc that becomes stuck in the disc drive, Sony has detailed exactly how you’ll be able to manually eject any disc that’s stuck within your new system:

Step 1: Remove The Glossy Section of the Cover

  1. Turn off the PS4.
  2. Unplug the power, HDMI, and any other cables from the back of your PS4 system.

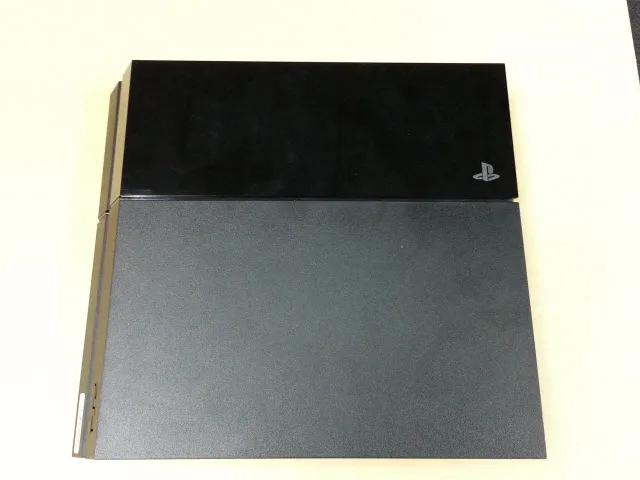

  3. On a clean, flat, surface place the PS4 in front of you so the front of the system is on the left. (The PS logo on the top of the PS4 should be right side up.)

ps4discfix1

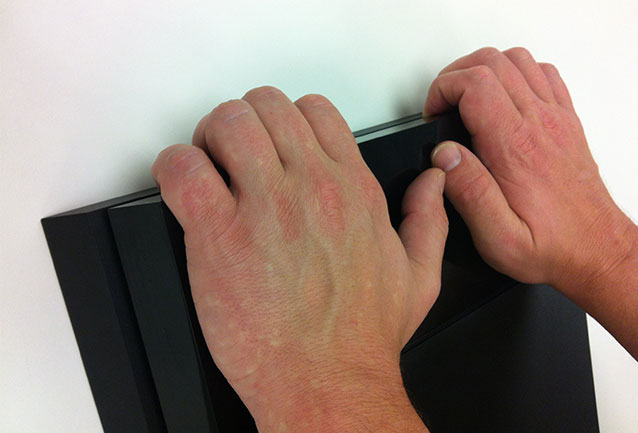

  1. Place your palms on the glossy panel and let your fingers rest on the far side of the console.

ps4discfix2

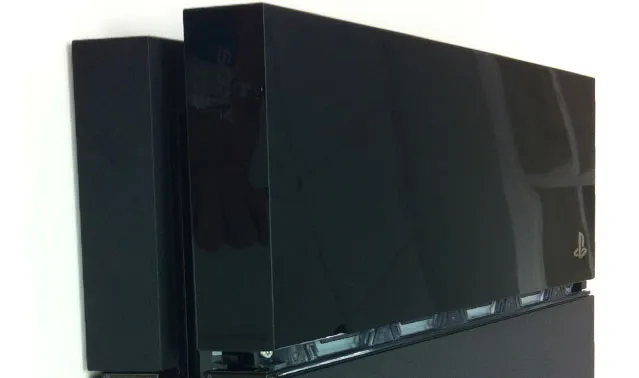

  1. Apply moderate, even pressure near the seam with your palms, and using your fingers as leverage, slide the glossy panel away from you.

ps4discfix3

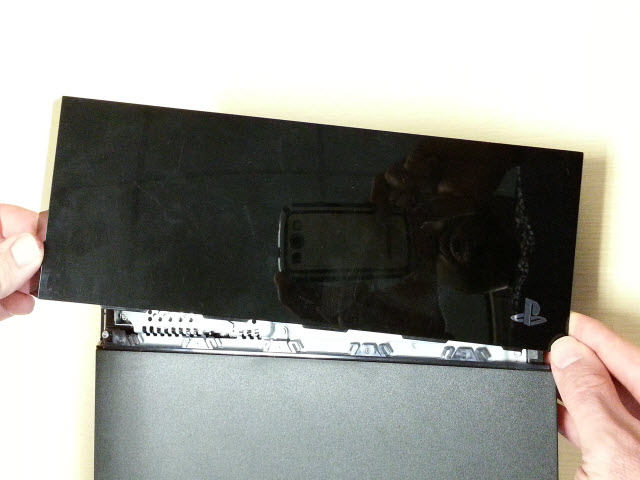

  1. A click will be heard, and the panel will move about 1/4″. Lift the panel off starting from the left side.

ps4discfix4

Step 2: Locate the Manual Eject Screw & Remove the Disc

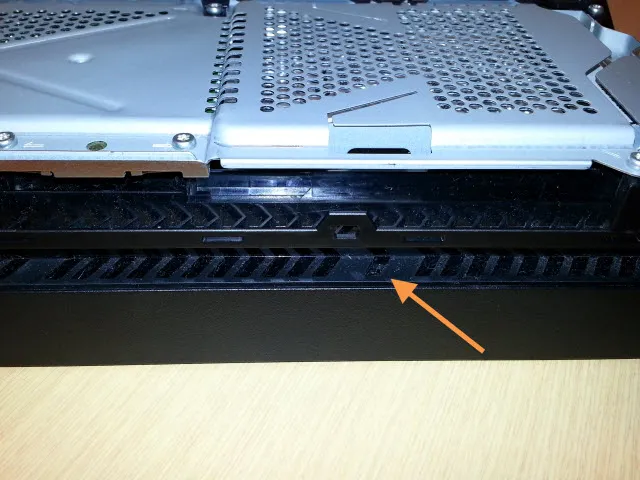

  1. With the glossy panel removed, you will see two sets of vents lining the outer left edge. Follow the slot from the front locate the first “single” slot (it’s the slot not grouped with any other slots) in the vent.

ps4discfix5

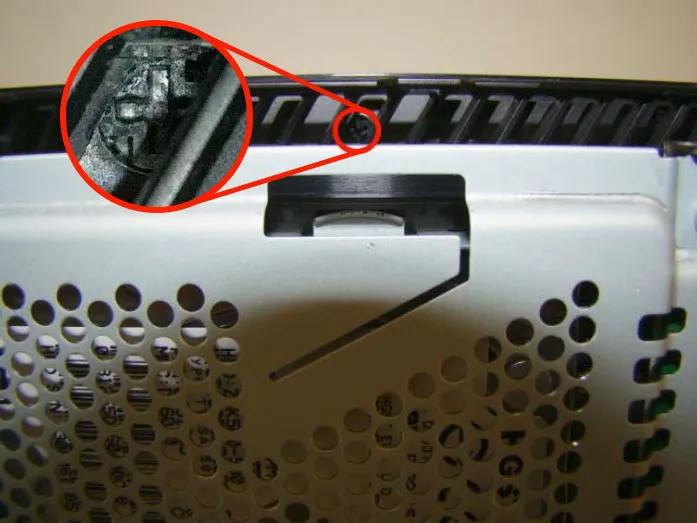

  1. Shine a light down through this slot to locate the manual eject screw.

ps4discfix6

  1. Slide the small screw driver into the vent slot and turn the screw counter-clockwise until the disc can be seen peeking out of the disc slot. This may take 3-6 rotations of the screw. Very little effort is required to turn the screw.

ps4discfix7

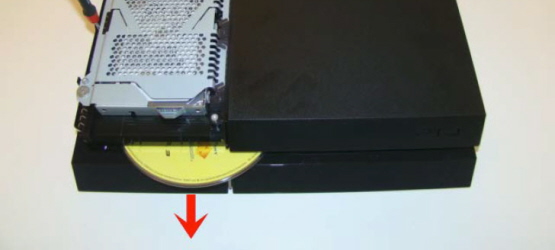

  1. Grab the disc by hand, and pull it out of the slot.

ps4discfix8

Step 3: Put Everything Back Together

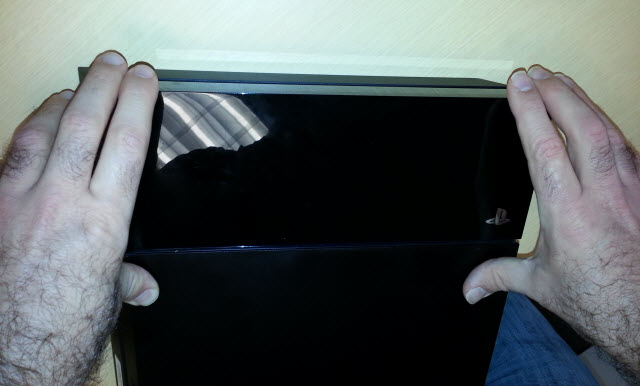

  1. Replace the glossy panel. Place it over the exposed section of the PS4, about 1/4 of inch away from the seam. Then, slide the panel towards seam until it clicks into place.

ps4discfix9

  1. Connect the HDMI, power, and any other cables that were disconnected in Step 1.
  2. Power on the PS4 to make sure everything is functioning properly.

There you have it!
